45ZW2430 24V DC 28W Brushless Motor & 12-36v 500w Brushless Driver

[Bernard]

No test this week .
Here video of the first run last week end.
Tracking and motor sense work also perfectly.
Only noise in perimeter signal is the actual issue



[Sascha]

What about test with the Enable management inside the code ?

I have download last Version from Github and change the Code, but did not work. The wheels still turn one after the other



[Sascha]

I am going crazy, now I have soldered a new PowerPCB, installed it and everything is ok. I have to press the button to switch on the PCB.
I reset everything and switched off, then switched on again and the PCB's have power again without pressing the button.
The IRF9540 MOSFETs seem to be of poor quality.



[Bernard]

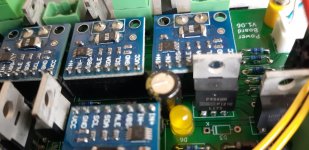

Very strange, can you post a picture of the PCB assembled ?



[Sascha]



[Bernard]

What's the capacitor value ?
What the exact 9540 you use ? I can't see on the Picture.

It's better to use J6 and U4 for one mow motor.



[Sascha]

The capacitor is a 100uf 50v.

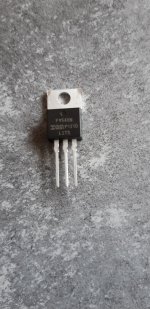

For the 9540 i will make a Pictures, but it i am not alone with it.

Fehlerbehebung taster P20, nach durchgebrannter EF2-Zekering

Habe heute einen dummen Fehler gemacht. Ich hatte die Leistung des (bürstenlosen) Motortreibers mit der Hauptplatine verbunden, aber nicht die Spulen eines der Motoren. Wahrscheinlich ist deshalb die Sicherung EF2 durchgebrannt. Diesen kann ich austauschen, aber ich stelle jetzt bei weiteren...

forum.ardumower.de



[Sascha]

This one i have used:

BOJACK IRF9540 MOSFET Transistoren IRF9540N 23 A 100 V P-Kanal Leistungs MOSFET TO-220AB (Packung mit 10 Stück) : Amazon.de: Gewerbe, Industrie & Wissenschaft

BOJACK IRF9540 MOSFET Transistoren IRF9540N 23 A 100 V P-Kanal Leistungs MOSFET TO-220AB (Packung mit 10 Stück) : Amazon.de: Gewerbe, Industrie & Wissenschaft

www.amazon.de



[Sascha]




[Bernard]

OK you need a N kanal IRF9540N



[Bernard]

OK you need a N kanal IRF9540N
But in the picture it's OK



[Sascha]

Can you make a Picture of yours or a link?
I can only find P-Channel IRF9540N



[Bernard]

Sorry i am wrong it's P canal ,I use this one:

IRF9540NPBF | MOSFET Infineon canal P, , TO-220AB 23 A 100 V, 3 broches | RS

fr.rs-online.com



[Bernard]



[Sascha]

Hm has something else written on it, but actually they should all be the same.



[Bernard]

Yes i think it's the same, but it's strange because everything work perfectly on my side on 2 Power PCB and certainly more than 100 power on/off test.
Did the IRF9540 heat when the mower is ON ?



[Sascha]

No does not get hot. The things must be of poor quality, because I soldered a new PowerPCB with completely new parts to rule out faults.
I'll order some more from Reichelt.



[Sascha]

Cable assignment mower motor:
White - A
Green - B
Blue - C

Now the engine runs smoothly and quietly



[LaurentS]

Cable assignment mower motor:
White - A
Green - B
Blue - C

Now the engine runs smoothly and quietly

It's seems to be like mine.



[Bernard]

@LaurentS : For the mow motor ,this driver can work, but on my test it did not work for drive motor, because it is too slow in reacting time.
Test it and tell me what's the result ..
